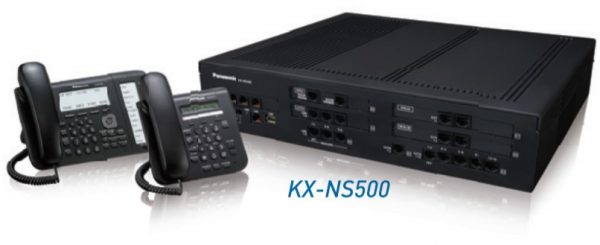

Panasonic-NS 500

SPECIFICATIONS

KX-NS500	KX-NS520
Main CPU Cortex A8 600 MHz	Cortex A8 300 MHz

Power Input 100 V AC to 130 V AC: 2.2 A/200 V AC to 240 V AC: 1.3 A; 50 Hz/60Hz
Power Consumption (when fully mounted) 110 W
External Backup Battery External battery port is supported
Memory Backup Duration 7 years

Dialling	Trunk	Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling
Extension	Dial Pulse (DP) 10 pps, 20 pps Tone (DTMF) Dialling

Mode Conversion DP-DTMF, DTMF-DP
Ring Frequency 20 Hz/25 Hz (selectable)

Operating Environment	Temperature	0 °C to 40 °C
Humidity	10 % to 90 % (non-condensing)
Conference Call Trunk From 10 x 3-party conference call to 4 x 8-party conference call	–
Music on Hold (MOH) Maximum 8 ports (Level Control: -31.5 dB to +31.5 dB per 0.5 dB) MOH: Selectable Internal/External Music Source port	–
External Paging Maximum 6 ports (Volume Control: -15.5 dB to +15.5 dB per 0.5 dB)	–
LAN Port	1 (for LAN connection)	10BASE-T/100BASE-TX (Auto MDI/MDI-X)	–
Extension Connection Cable	SLT	1-pair wire (T, R)
DPT	1-pair wire (D1, D2) or 2-pair wire (T, R, D1, D2)
PT-interface CS	1-pair wire (D1, D2)
PT-interface CS (High density)	4-pair wire (D1, D2)
DSS Console and Add on Key Module	1-pair wire (D1, D2)

Air-cooling Method Fan
Dimension 430 mm (W) x 88 mm (H) x 367 mm (D)
Weight (when fully mounted) Under 4.5 kg

SYSTEM CAPACITY
MAXIMUM TRUNKS
THE PBX SUPPORTS THE FOLLOWING NUMBER OF TRUNKS.
TYPE KX-NS500 With 1 KX-NS520 With 2 KX-NS520 With 3 KX-NS520

Total Number of Trunks	100 ch	130 ch	160 ch	190 ch
Legacy	36 ch	66 ch	96 ch	126 ch
PRI30	30 ch	60 ch	90 ch	120 ch
E1	30 ch	60 ch	90 ch	120 ch
Analogue	12 lines	24 lines	36 lines	48 lines
IP	64 ch	64 ch	64 ch	64 ch
H.323	32 ch	32 ch	32 ch	32 ch
SIP	64 ch	64 ch	64 ch	64 ch

MAXIMUM TERMINAL EQUIPMENT
THE FOLLOWING SHOWS THE NUMBER OF EACH TERMINAL EQUIPMENT TYPE SUPPORTED BY THE PBX.
TYPE KX-NS500 With 1 KX-NS520 With 2 KX-NS520 With 3 KX-NS520

Extensions (DXDP*1)	162 (168)	194 (208)	226 (248)	258 (288)
Legacy (DXDP*1)	34 (40)	66 (80)	98 (120)	130 (160)
SLT	32	64	96	128
DPT (DXDP*1)	18 (24)	34 (48)	50 (72)	66 (96)
APT	8	16	24	32
IP	128	128	128	128
IP-PT*2	128	128	128	128
SIP	128	128	128	128
SIP Phone*3	128	128	128	128
S-PS	128	128	128	128
DSS Console	8	8	8	8
CS	20	24	28	32
DPT-CS (2 ch) / (8 ch)	4 / 2	8 / 4	12 / 6	16 / 8
IP-CS/SIP-CS	16	16	16	16
PS	128	128	128	128
VM
ESVM (ch)	2	2	2	2
Built-in UM (ch)	24	24	24	24
TVM Unit	2	2	2	2
Doorphone	2	4	6	8
Door Opener	2	4	6	8
External Sensor	2	4	6	8

*1 When Digital XDP is used.
*2 KX-NT500 series, KX-NT300 series, and KX-NT265 (software version 2.00 or later only).
*3 KX-UT Series, KX-NT700 and third party SIP phones (SIP hardphones/SIP softphones).
